2F 3F 4F tungsten carbide ball nose end mills
Tungsten carbide ball end mill is a high hardness, high wear resistance and high precision cutting tool for machining complex curved surfaces and 3D contours.
Widely used in mold manufacturing, aerospace, automotive industry and other fields.
Features: With a spherical blade, it can efficiently and accurately machine complex curved shapes.
Applications

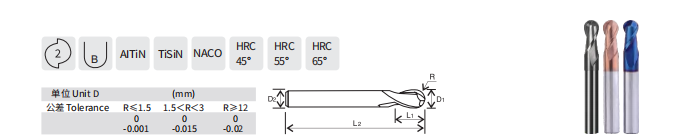

| 单位Unit:mm | ||||||
| Model | Diameter D | Radius R | Cutting Length | Shank D2 | Overall Length L2 | |
| Standard | QD-2F-01020450 | 1 | 0.5 | 2 | 4 | 50 |
| QD-2F-015030450 | 1.5 | 0.75 | 3 | 4 | 50 | |
| QD-2F-02040450 | 2 | 1 | 4 | 4 | 50 | |
| QD-2F-025050450 | 2.5 | 1.25 | 5 | 4 | 50 | |
| QD-2F-03060350 | 3 | 1.5 | 6 | 3 | 50 | |
| QD-2F-03060450 | 3 | 1.5 | 6 | 4 | 50 | |
| QD-2F-035070450 | 3.5 | 1.75 | 7 | 4 | 50 | |
| QD-2F-04080450 | 4 | 2 | 8 | 4 | 50 | |
| QD-2F-05100550 | 5 | 2.5 | 10 | 5 | 50 | |
| QD-2F-05100650 | 5 | 2.5 | 10 | 6 | 50 | |
| QD-2F-06120650 | 6 | 3 | 12 | 6 | 50 | |
| QD-2F-07140860 | 7 | 3.5 | 14 | 8 | 60 | |
| QD-2F-08160860 | 8 | 4 | 16 | 8 | 60 | |
| QD-2F-10201075 | 10 | 5 | 20 | 10 | 75 | |
| QD-2F-12241275 | 12 | 6 | 24 | 12 | 75 | |
| QD-2F-142814100 | 14 | 7 | 28 | 14 | 100 | |
| QD-2F-163216100 | 16 | 8 | 32 | 16 | 100 | |
| QD-2F-183618100 | 18 | 9 | 36 | 18 | 100 | |
| QD-2F-204020100 | 20 | 10 | 40 | 20 | 100 | |
| Orcustomized | ||||||
| 单位Unit:mm | ||||||
| Model | Diameter D | Radius R | Cutting Length | Shank D2 | Overall Length L2 | |
| Extra Long | QD-2F-03060375 | 3 | 1.5 | 6 | 3 | 75 |
| QD-2F-04080475 | 4 | 2 | 8 | 4 | 75 | |
| QD-2F-05100575 | 5 | 2.5 | 10 | 5 | 75 | |
| QD-2F-06120675 | 6 | 3 | 12 | 6 | 75 | |
| QD-2F-08160875 | 8 | 4 | 16 | 8 | 75 | |
| QD-2F-030603100 | 3 | 1.5 | 6 | 3 | 100 | |
| QD-2F-040804100 | 4 | 2 | 8 | 4 | 100 | |
| QD-2F-051005100 | 5 | 2.5 | 10 | 5 | 100 | |
| QD-2F-061206100 | 6 | 3 | 12 | 6 | 100 | |
| QD-2F-081608100 | 8 | 4 | 16 | 8 | 100 | |
| QD-2F-102010100 | 10 | 5 | 20 | 10 | 100 | |
| QD-2F-122412100 | 12 | 6 | 24 | 12 | 100 | |
| QD-2F-061206150 | 6 | 3 | 12 | 6 | 150 | |
| QD-2F-081608150 | 8 | 4 | 16 | 8 | 150 | |
| QD-2F-102010150 | 10 | 5 | 20 | 10 | 150 | |
| QD-2F-122412150 | 12 | 6 | 24 | 12 | 150 | |
| QD-2F-142814150 | 14 | 7 | 28 | 14 | 150 | |
| QD-2F-163216150 | 16 | 8 | 32 | 16 | 150 | |
| QD-2F-183618150 | 18 | 9 | 36 | 18 | 150 | |
| QD-2F-204020150 | 20 | 10 | 40 | 20 | 150 | |
| QD-2F-061206200 | 6 | 3 | 12 | 6 | 200 | |
| QD-2F-081608200 | 8 | 4 | 16 | 8 | 200 | |
| QD-2F-102010200 | 10 | 5 | 20 | 10 | 200 | |
| QD-2F-122412200 | 12 | 6 | 24 | 12 | 200 | |
| QD-2F-163216200 | 16 | 8 | 32 | 16 | 200 | |
| Orcustomized | ||||||
